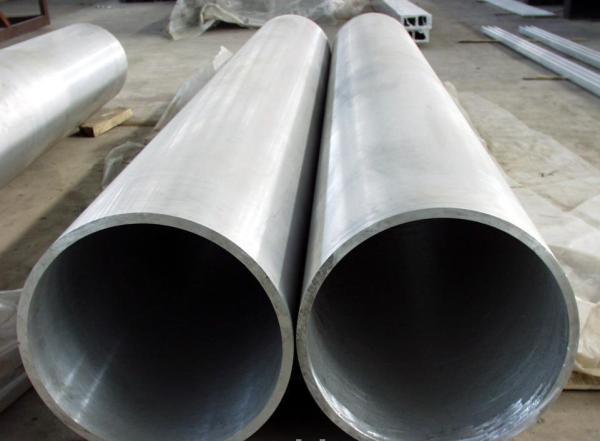

DIN ANSI Annealed Welded Duplex Stainless Steel Sch40 Pipe

    Buy cheap DIN ANSI Annealed Welded Duplex Stainless Steel Sch40 Pipe from wholesalers

    Buy cheap DIN ANSI Annealed Welded Duplex Stainless Steel Sch40 Pipe from wholesalers
    • Buy cheap DIN ANSI Annealed Welded Duplex Stainless Steel Sch40 Pipe from wholesalers
    • Buy cheap DIN ANSI Annealed Welded Duplex Stainless Steel Sch40 Pipe from wholesalers
    • Buy cheap DIN ANSI Annealed Welded Duplex Stainless Steel Sch40 Pipe from wholesalers
    • Buy cheap DIN ANSI Annealed Welded Duplex Stainless Steel Sch40 Pipe from wholesalers

    DIN ANSI Annealed Welded Duplex Stainless Steel Sch40 Pipe

    Ask Lasest Price
    Brand Name : TOBO/TPCO/TISCO/VALIN/METAL
    Model Number : Duplex Stainless Steel Pipe
    Certification : ISO/PED/TUV/SGS/LR/BV
    Price : USD Depending on quantity
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 tons per month
    Delivery Time : 10-90 work days
    • Product Details
    • Company Profile

    DIN ANSI Annealed Welded Duplex Stainless Steel Sch40 Pipe

    DIN ANSI Annealed Welded Duplex Stainless Steel Sch40 Pipe

    Product Decription:

    Inspection & Test
    1. 100% PMI, Spectro Chemical Analysis Test for Raw Material
    2. 100% Dimension & Visual Examination
    3. Mechanical Properties Test Include Tension Test Flattening Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
    4. 100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
    5. Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
    6. Straightness Test (optional)
    7. Roughness Test (optional)
    8. Intergranular Corrosion Test(optional)
    9. Impact Test (optional)
    10. Grain Size Determinations (optional)
    NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.

    Specification:
    1. Material: Stainless Steel Pipe S31803/S31500/S32750 ETC
    2. O.D: 6mm-710mm , Thickness:2.5-50mm

    3. A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the Thpe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.

    4. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8” TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.

    5. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the lenss than the permitted in Section 9 of Specification A999/A999M

    6. Butt Weld End: According to ANSI B 16.25
    7. Pipe Marking: Specified in A999/999M, include “Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T”

    8. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.

    9. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.

    10. MTC: TOBO Official Original MTC paper will be supplied for each order.

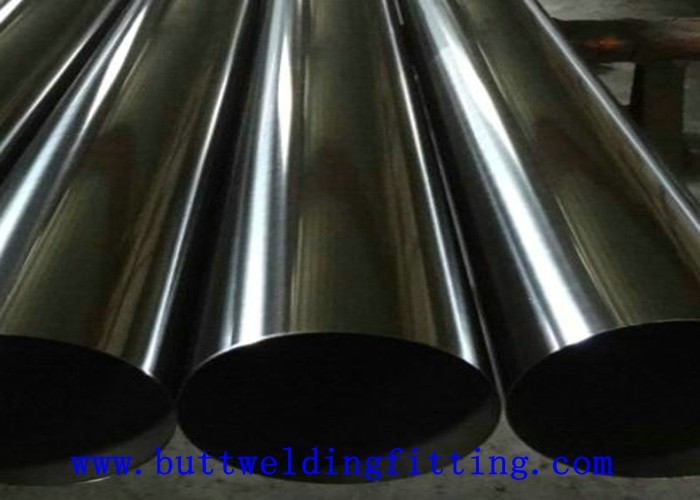

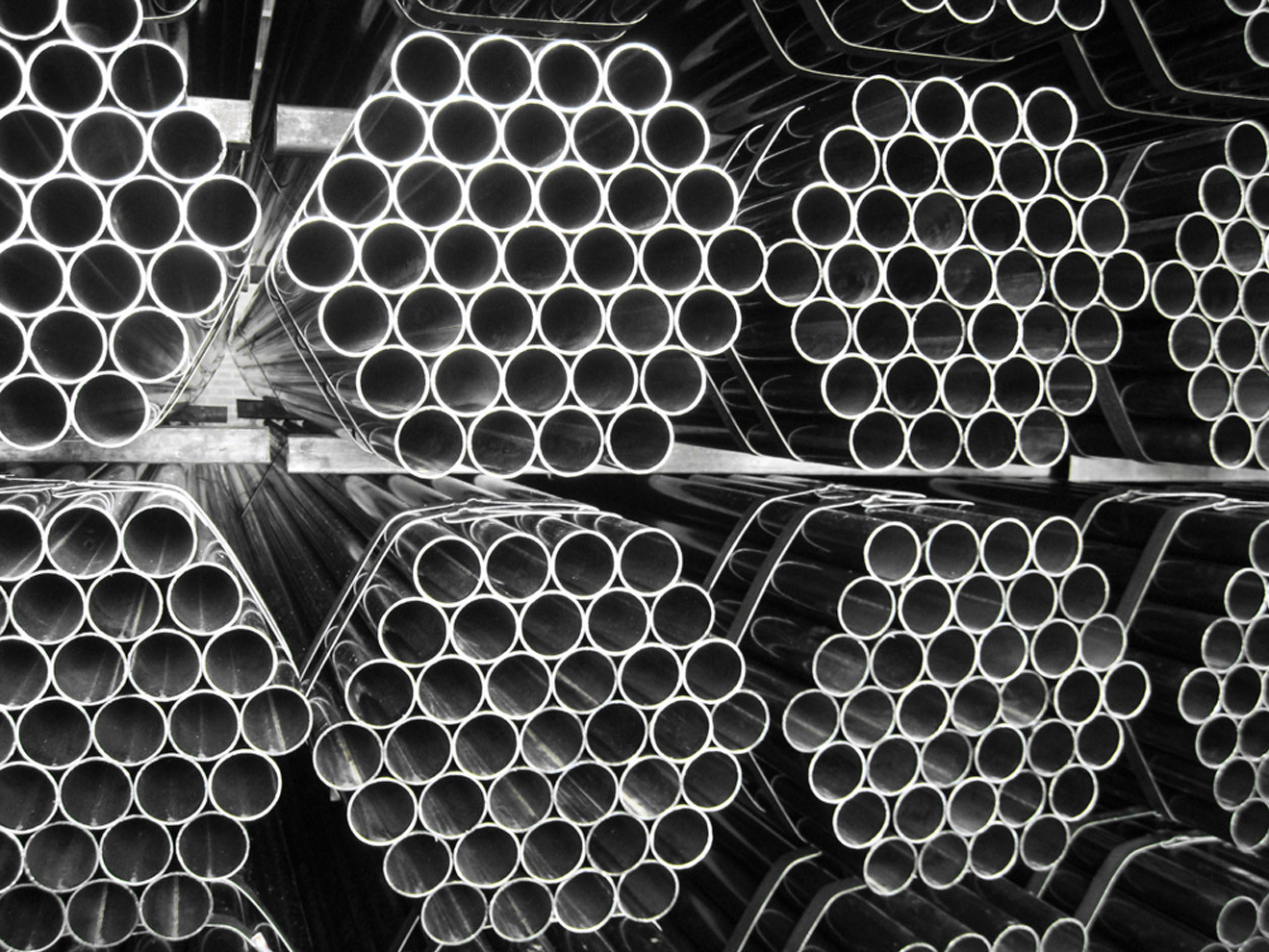

    DIN ANSI Annealed Welded Duplex Stainless Steel Sch40 Pipe

    DIN ANSI Annealed Welded Duplex Stainless Steel Sch40 PipeDIN ANSI Annealed Welded Duplex Stainless Steel Sch40 Pipe


    Advantages:


    a) Advanced technology of cold draw machine


    b) Advanced annealing machine


    c) Better mechanical property


    d) More precise dimension


    e) Perfect inspection method and inspection equipment etc


    FAQ:

    1. Are you a trading company or manufacturer?

    We are manufacturer, You can see the Alibaba certification.

    2. How long is your delivery time?

    Generally, it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

    3. Do you provide samples ? is it free or extra?

    Yes, we could offer the sample for free charge but need to pay the cost of freight.

    4. What are your terms of payment?

    Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
