    ASTM A778 321 304 304L 316 Stainless Steel Welded Pipe , Annealed & Pickled

    Ask Lasest Price
    Brand Name : TOBO/TPCO/TISCO/VALIN/METAL
    Model Number : 201,202,301, 321, 304, 304L, 316, 316L, 409,
    Certification : ISO/PED/TUV/SGS/LR/BV
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 6000TONS/MONTH
    Delivery Time : According to the qty
    • Product Details
    • Company Profile

    ASTM A778 321 304 304L 316 Stainless Steel Welded Pipe , Annealed & Pickled

    ASTM A778 321 304 304L 316 Stainless Steel Welded Pipe , Annealed & Pickled

    Quick Detail:

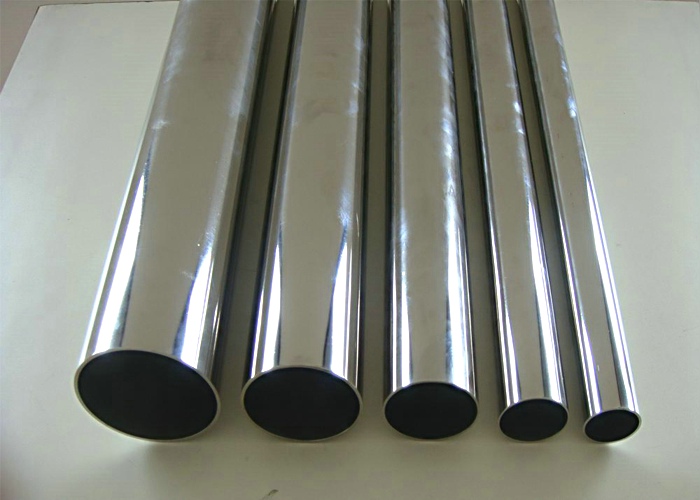

    Stainless Steel Welded Round Pipe
    1. Thickness: 0.1mm~30mm
    2. OD range: 1.5mm~2000mm

    Stainless Steel Welded Square Pipe
    1. Thickness: 0.2mm~8mm
    2. OD range: S4mm~S300mm

    Stainless Steel Welded Rectangular Pipe
    1. Thickness: 0.2mm~8mm
    2. OD range: (4x6)mm ~ (200x400)mm


    The welded stainless steel pipe is made from stainless steel by electric welding or sheet metal strips by means of forming and welding. Electrically welded tube is made of thermally without subsequent processing and hot-reducing.

    Specifications of Stainless Steel Welded Pipe

    Product name:

    Stainless Steel Welded tubing

    Standard:

    ASTM A213, ASTM A312, ASTM A269, ASTM A789, JIS G3448, JIS G3456, JIS G3459, JIS G3463, DIN 10216, DIN 17458

    Grade:

    201,202,301, 321, 304, 304L, 316, 316L, 409, etc

    OD range:

    1.5mm-101.6mm

    Wall thickness range:

    0.1mm-3mm

    Application

    Window,Door,Handrail,Curtain rail,Towel rail,Flagpole,Lamp pole,Sanitary Instrument,Billboard,Decoration,Upholstery,
    Construction,Accessory,Airport,Bus Stop.

    Surface finish:

    pickling, annealing, manual polish and mechanical polish, mirror polish



    Features of Stainless Steel Welded Pipe

    1. Uniform wall thickness
    2. High brightness for tube appearance
    3. Arbitrary dimension as your requirement
    4. Economy & beautiful

    tainless steel pipe chemical composition

    Grade

    Chemical Composition %

    C

    Cr

    Ni

    Mn

    P

    S

    Mo

    Si

    N

    1Cr17Mn6Ni5N (201)

    ≤0.15

    16.00-8.00

    3.50-5.50

    5.50-7.50

    ≤0.06

    ≤0.03


    ≤1.00

    ≤0.25

    1Cr18Mn8Ni5N (202)

    ≤0.15

    17.0019.00

    4.00-6.00

    5.50-7.50

    ≤0.06

    ≤0.03


    ≤1.00

    ≤0.25

    0Cr18Ni9
    (304)

    ≤0.07

    17.00-19.00

    8.00-10.00

    ≤2.00

    ≤0.035

    ≤0.03


    ≤1.0


    00Cr18Ni10
    (304L)

    ≤0.03

    18.00-20.00

    8.00-10.00

    ≤2.00

    ≤0.035

    ≤0.03


    ≤1.0


    0Cr17Ni12Mo2 (316)

    ≤0.08

    16.00-18.50

    10.00-14.00

    ≤2.00

    ≤0.035

    ≤0.03

    2.003.00

    ≤1.0


    0Cr17Ni14Mo2 (316L)

    ≤0.03

    16.00-18.00

    12.00-15.00


    Applications of Stainless Steel Welded Pipe
    1.Construction: Architectural decoration , banister, city-scape .etc
    2.Food producing equipment::such as beer brewing, milk processing & wine making .etc
    3.Medical field: medical instruments
    4.Fluid transport-pipeline: fluid pipe ,pressure pipe ,pipe for mechical structure , including for transport
    5.Heat Exchanger tube



    Packing and Label

    We wrap the stainless steel products with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.
